Complete TEC® System Solves Installation Challenges at Pinckney School's New Fine Arts Connector

AURORA, IL…A fine arts building addition at Pathfinder and Navigator Schools in Pinckney, MI contains more than 16,000 square feet of tile, all installed with TEC^® products.

The building addition houses fine and performing arts space, including a new band and orchestra suite, choir and music rooms, art rooms, a fine arts integration studio and conference room.

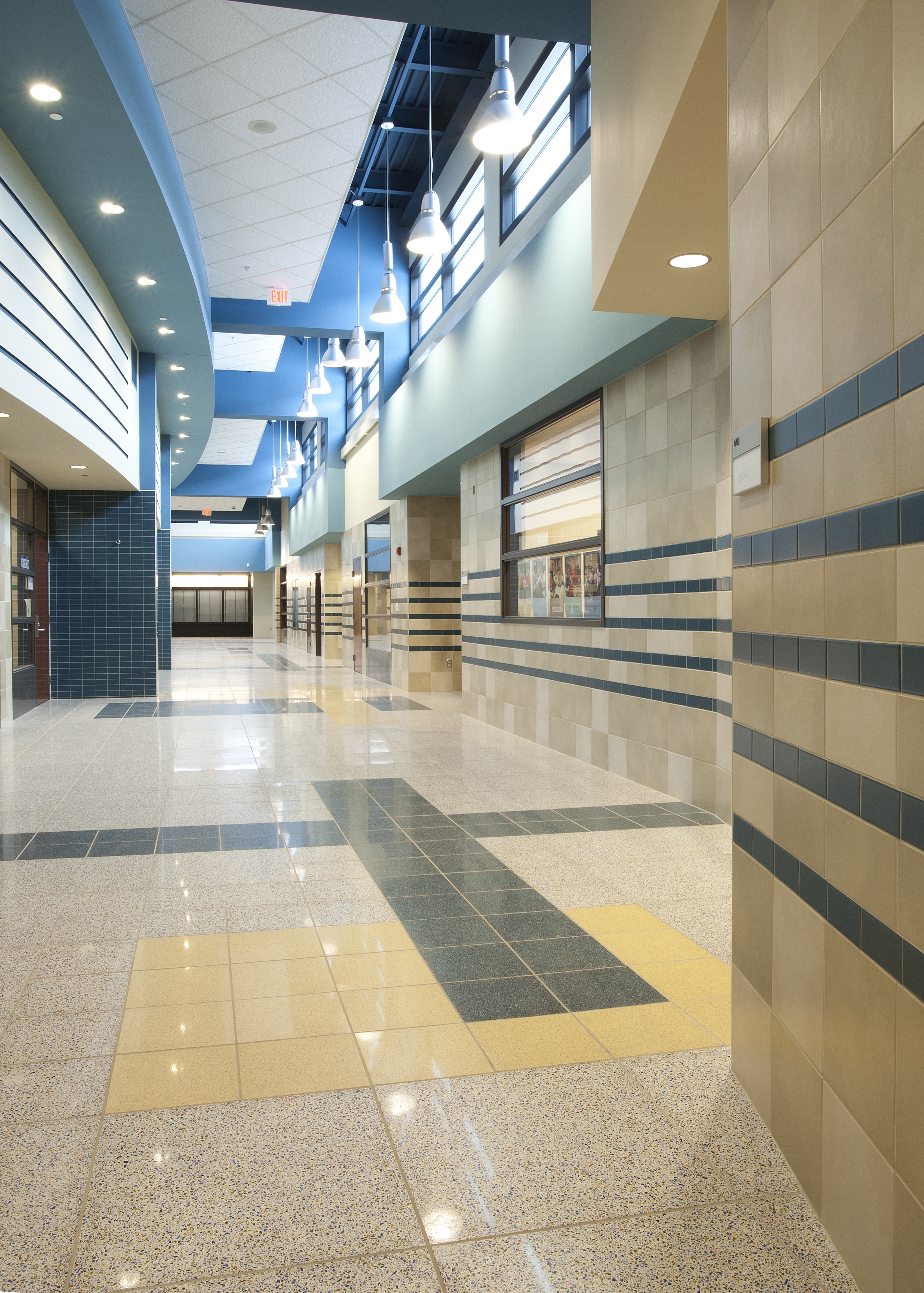

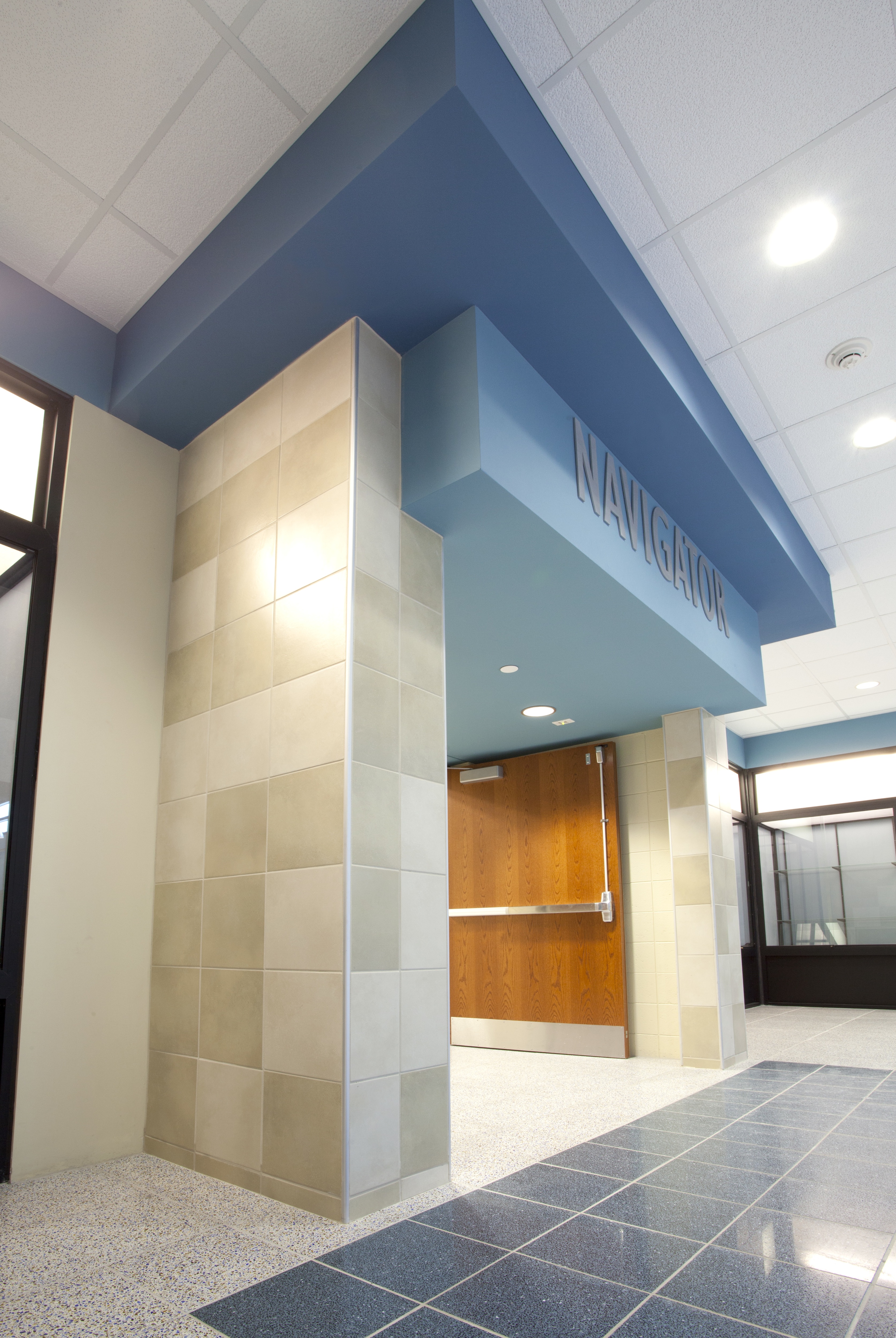

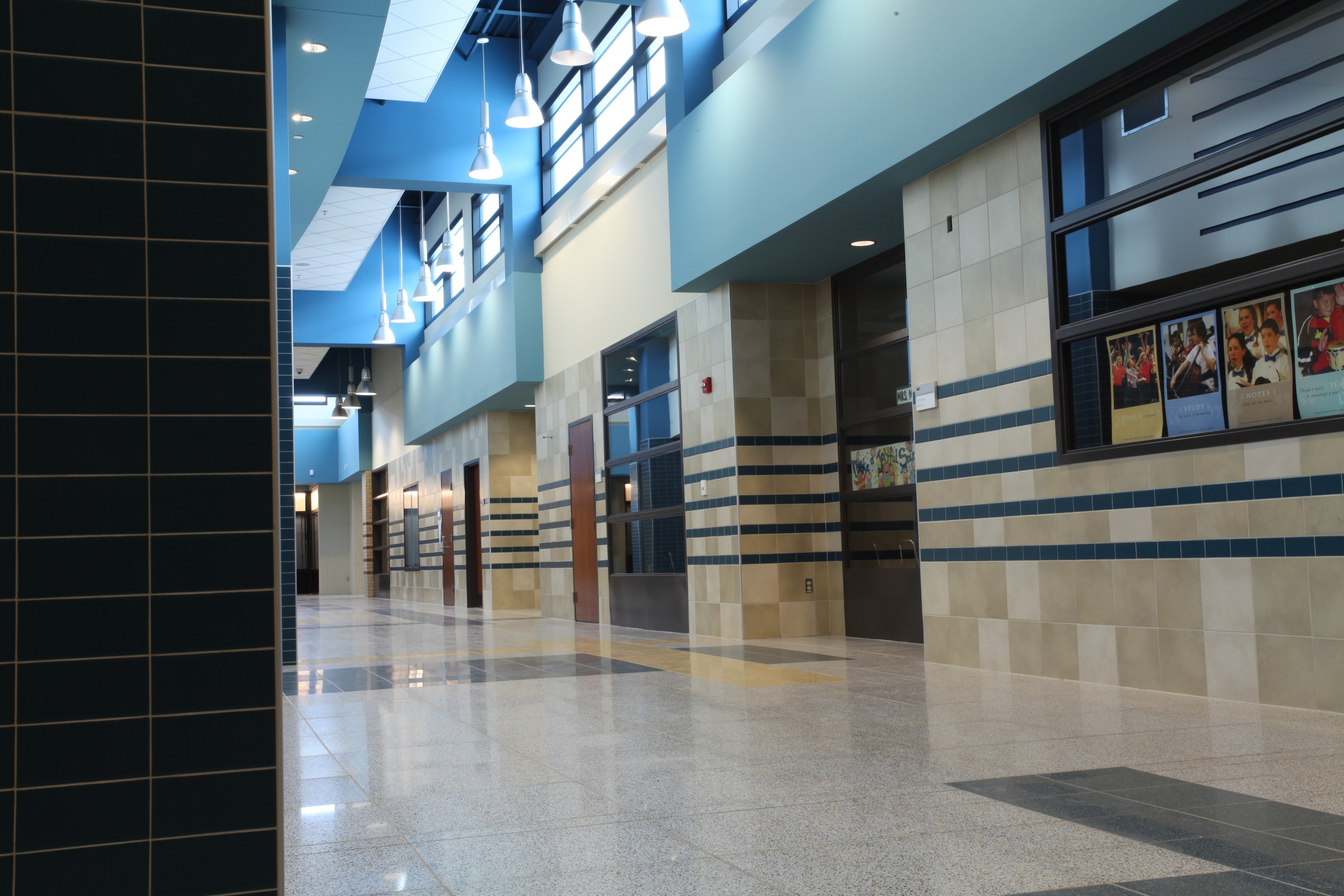

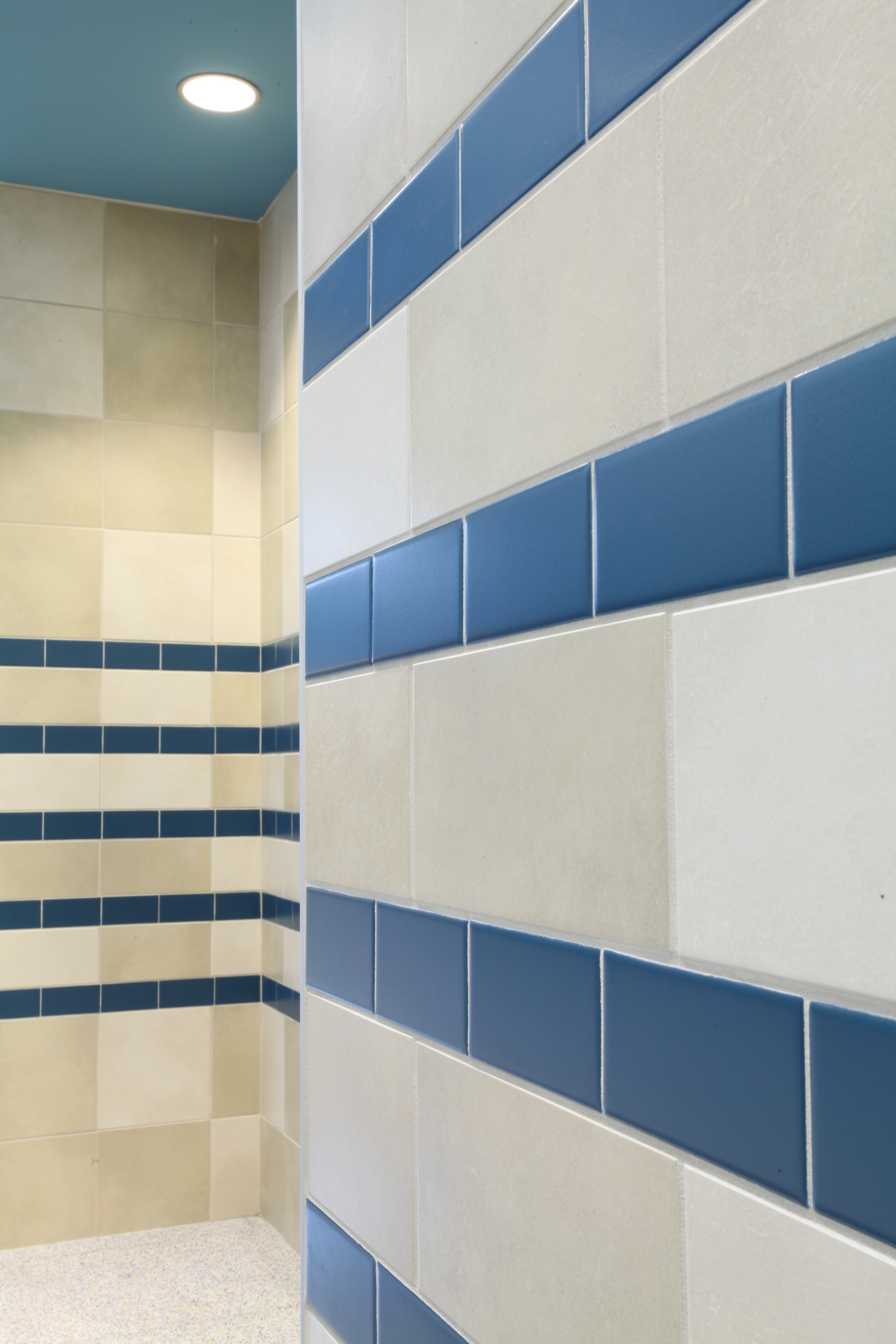

More than 15,000 square feet of terrazzo, ceramic and porcelain tile is featured inside the facility. Terrazzo tile outfits the floor, ceramic adorns interior columns and porcelain creates unique interior benches.

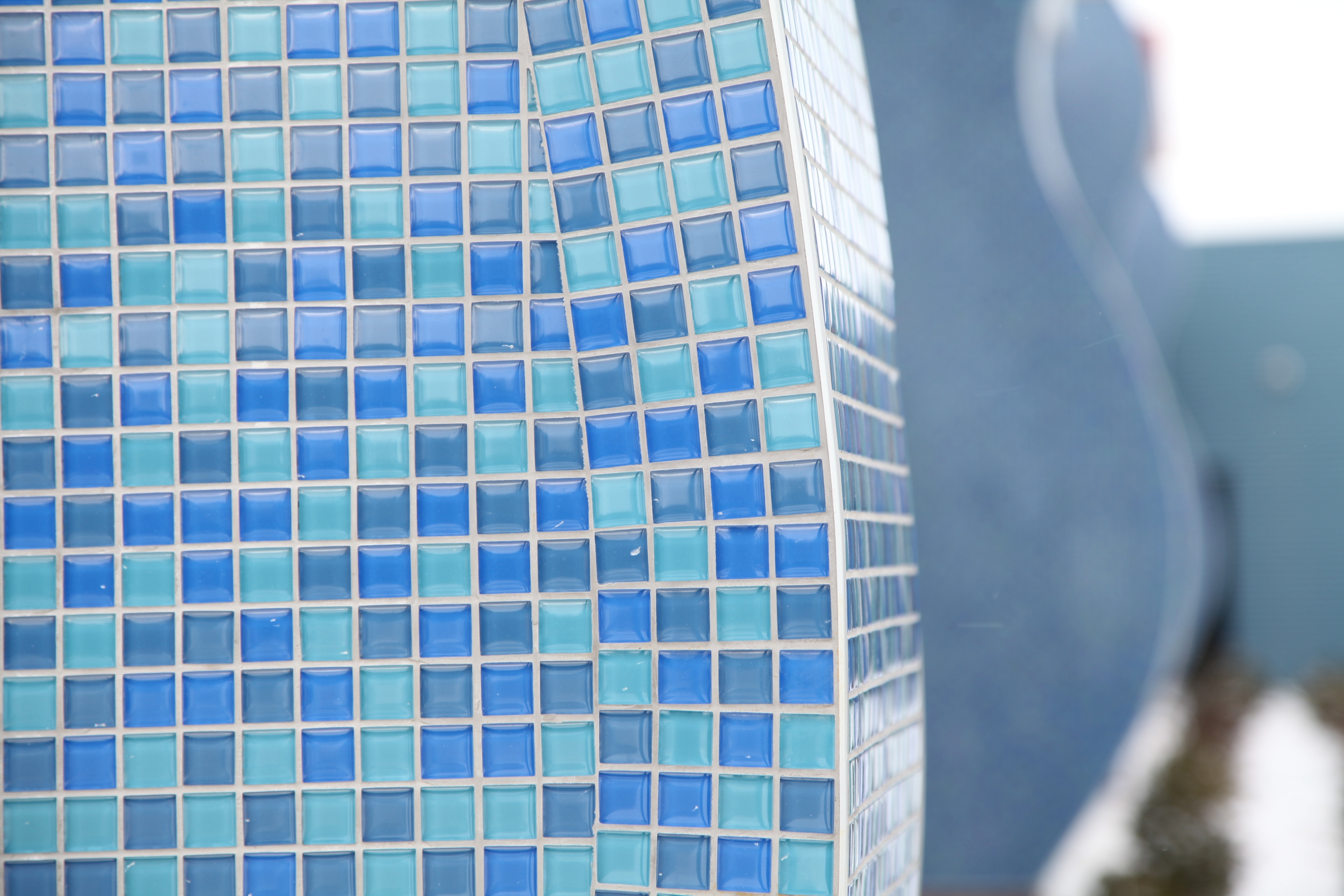

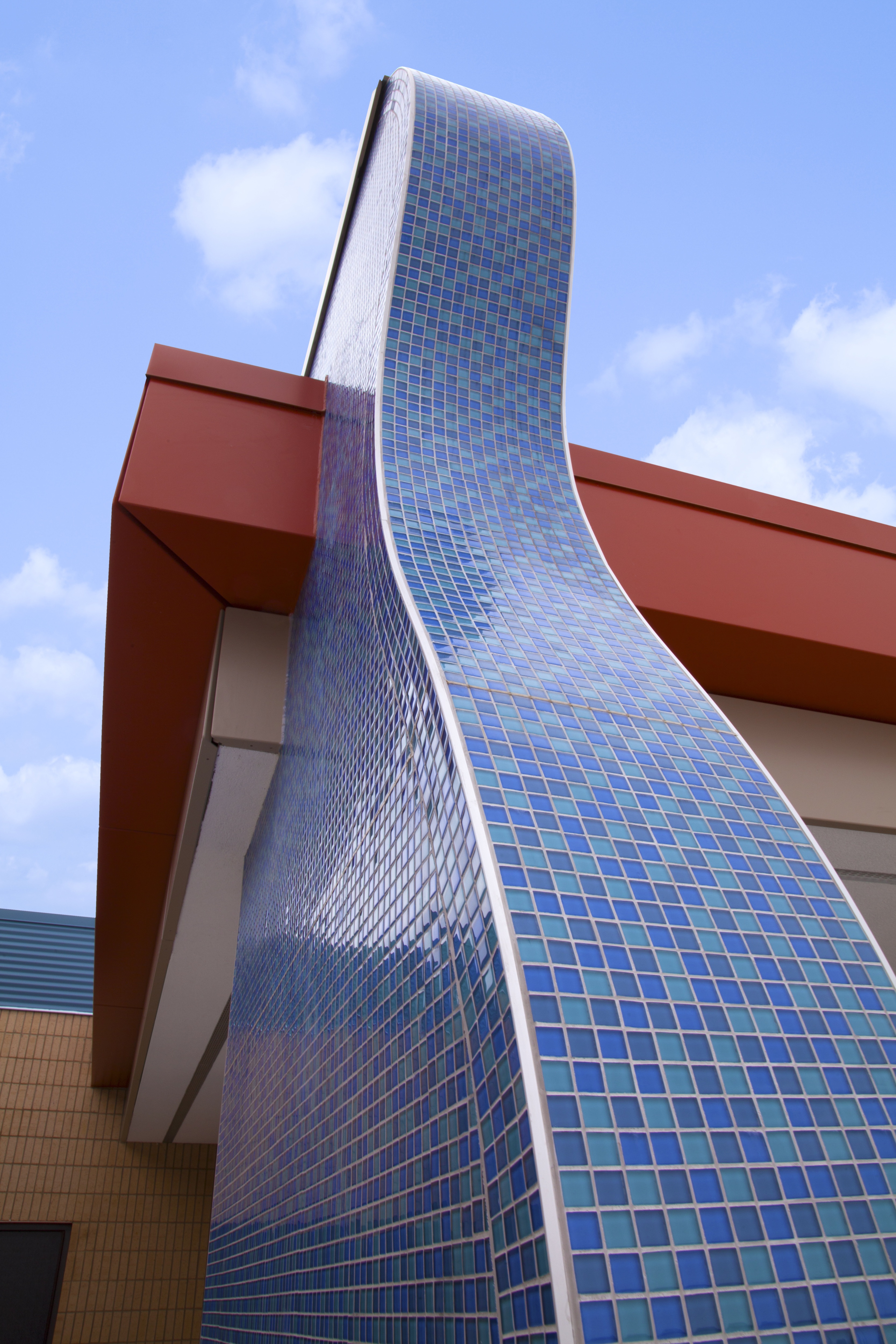

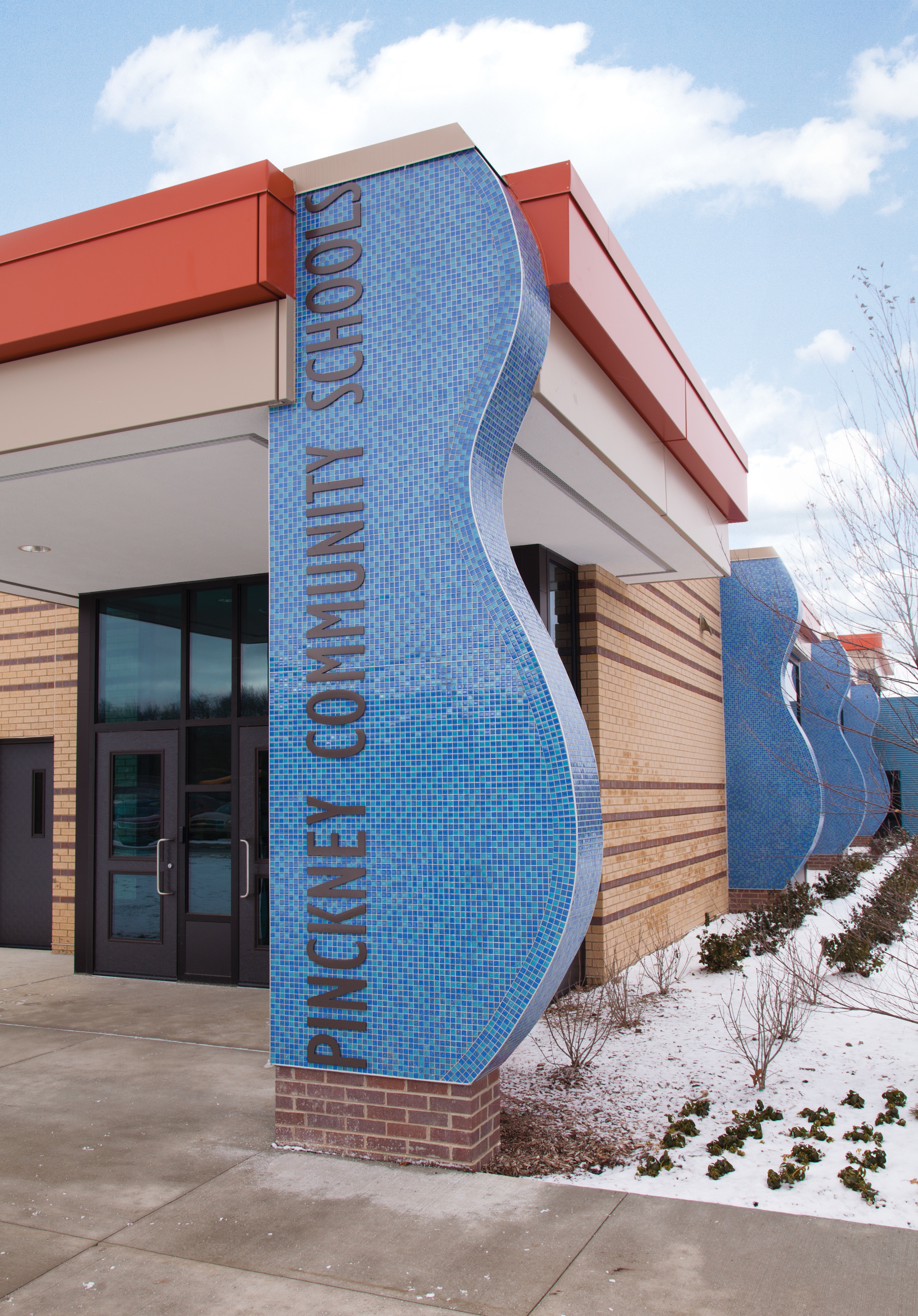

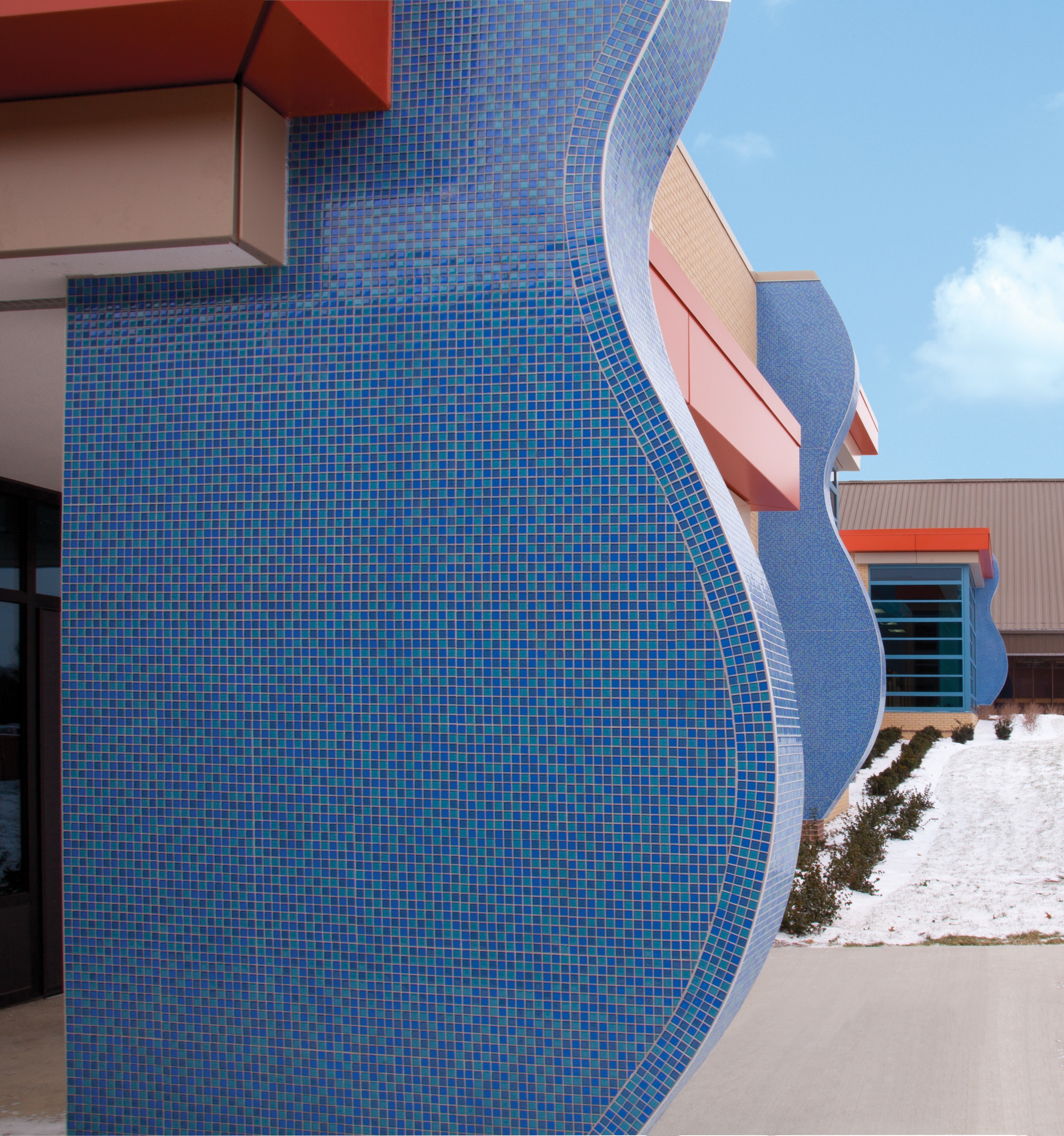

Outside, the Fine Arts Connector makes an especially artistic statement. An additional 1,000 square feet of tile is featured on seven piers that are curved, designed to resemble the profile of a cello. Installing glass tile on the undulating piers created many challenges for the project team, so they turned to TEC brand products.

“We were presented with several unique challenges on this project,” said Jennifer Panning, President of Artisan Tile, Inc., who served as tile subcontractor. “The combination of a 30 feet-high exterior application, using glass tile, various radiuses and a vertical substrate meant we needed products that could stand up to these challenges. We chose the TEC brand for this very reason – quality products and technical support.”

Artisan Tile’s firsthand experience and past successes with TEC products and technical support made their choice easy. The construction manager, architect and H.B. Fuller Construction Products representatives were involved early on to consult and help navigate the complexities of the job. Everyone worked together to determine the solution. According to Panning, the team agreed that the most important part of the tile installation was beneath the surface. As a result, Artisan Tile spent 80 percent of its time focusing on substrate preparation.

Artisan Tile utilized several TEC products that all meet or exceed ANSI specifications: Xtra Flex^™ Acrylic Latex Additive, HydraFlex^™ Waterproofing Crack Isolation Membrane, Super Flex^™ Mortar, AccuColor^® Premium Unsanded Grout and TEC®Acrylic Grout Additive.

On the scratch coat and mud set, XtraFlex Acrylic Latex Additive was used at a 1:1 ratio, providing additional bond strength. For waterproofing, HydraFlex^™ Waterproofing Crack Isolation Membrane was used. It is flexible, mold and mildew resistant and has crack isolation properties.

Super Flex^™ Mortar was used to set the tile and has the highest bond strength of any TEC mortar. AccuColor^® Premium Unsanded Grout was mixed with TEC^® Acrylic Grout Additive in place of water. Together they form joints that are less susceptible to water penetration, which is necessary for exterior use in Michigan’s freeze/thaw climate.

Combined, the TEC products worked to overcome the unique set of installation challenges the project team encountered. The result is a striking external aesthetic that sustains the seasonal elements of Michigan, and a beautiful interior that endures high traffic and heavy use by students.

“We are happy with the results TEC products brought to the Fine Arts Connector,” said Panning. “H.B. Fuller Construction Products provided the technical support and products we needed to provide a smooth installation that meets the unique challenges of the project.”

The Fine Arts Connector was completed in August 2012. The Michigan-based project team included Artisan Tile, Inc., Wold Architects and Engineers, and construction manager, George W. Auch Company.
